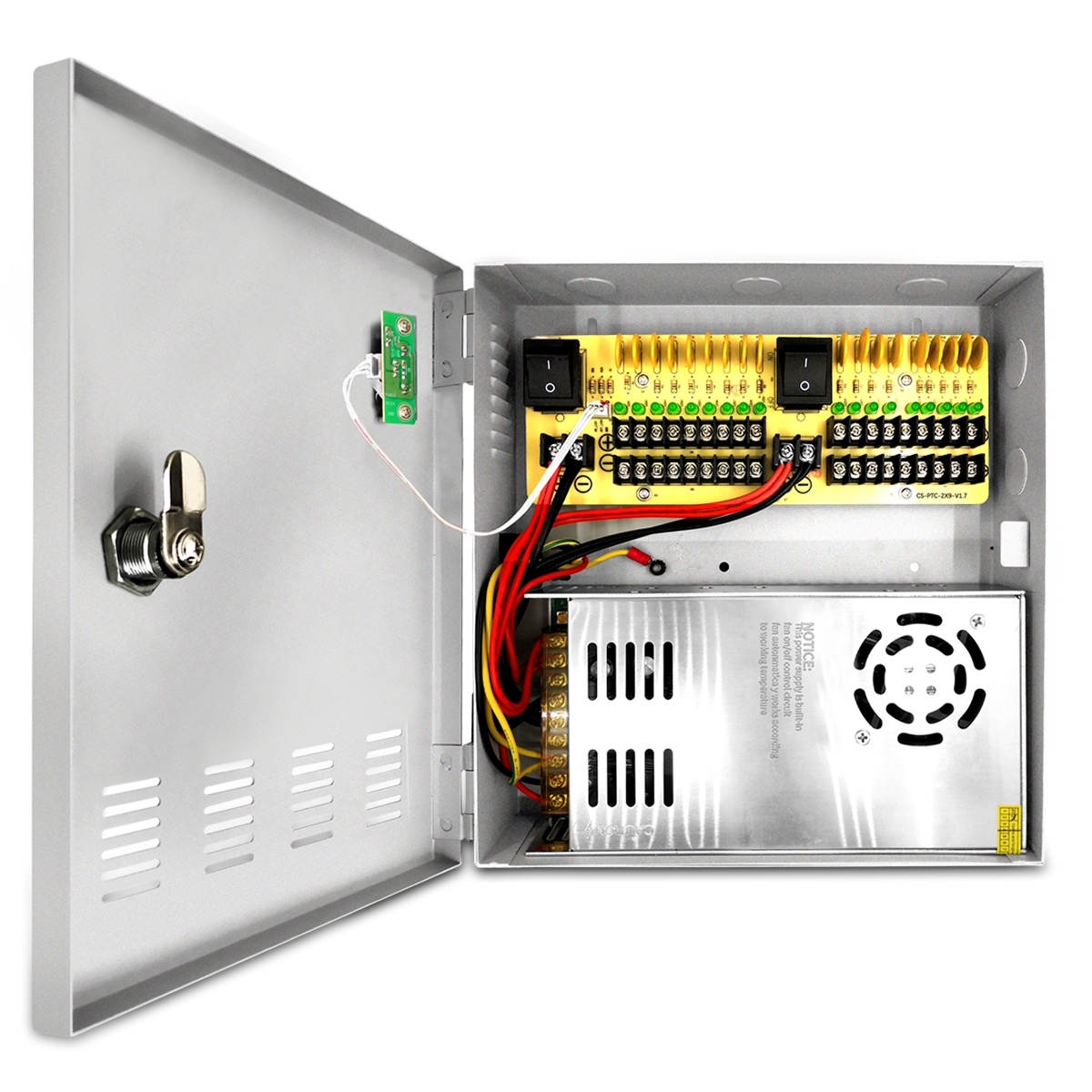

18 Channel 12 Volt DC Output 30A CCTV Distributed Power Supply Box for Security Camera with AC Plug and Lock for Security Cameras, DVRs, CCTV Power Supply (30A 18-Channel)

User Manual: Download

About This Item

Unboxing Video

Product Description

{Safety}

Lightning protection, overload protection, short circuit protection. Each port has a separate fuse and a separate LED indicator.

{General protection}

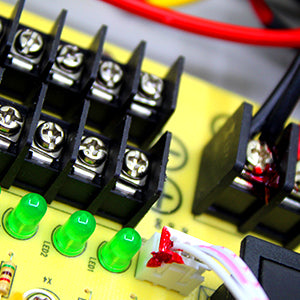

Each output has an independent PTC fuse and LED indicator, lightning protection, working longer than 100000 hours, when a problem occurs, only the independent output is affected, and other outputs still work.

{Short circuit protection}

When a short circuit occurs, the independent PTC fuse will open the circuit, and when the condition is removed, the PTC fuse will automatically resume closing.

{High voltage protection}

When high voltage occurs, the surge protection will be broken down to protect the connected equipment.

{Over-current protection}

When an over-current occurs, the power supply will automatically switch to the self-protection state, and when the condition is removed, it will switch back to the normal state.

Specification:

• Input Voltage ： AC 100-240V
• Input Voltage Frequency ： 50/60Hz
• Output Voltage ： DC 12V +/-5%
• Total Output Current ： 30A
• Total Outputs ： 18
• Fuse Type ： PTC (Resetable)
• Output for each channel： 1.66A
• Max Current for PTC Fuse ： 1.85A
• Storage Temperature: -40F-185F
• Operation Temperature: -4F-140F

Installation Steps

• 1. Turn power switch to"OFF"position.
• 2. Connect each camera device to one"+"/"-''power output pair
• 3. Plug the AC plug into 110V AC power outlet.
• 4. Turn power switch to " ON" position,the output LED indicator of each channel should be on.
• 5. Close the cover and secure it with the provided screws.

With over-voltage protection, overload protection, overheating protection and prevent yellow circuit multiple protection function.

Input port please follow the line L, N line & GND line connection; Output port, connect the positive and negative electrodes with red and black wires, respectively.

Switching power supply box as a power splitter, Applicable to a variety of DC electronic products.

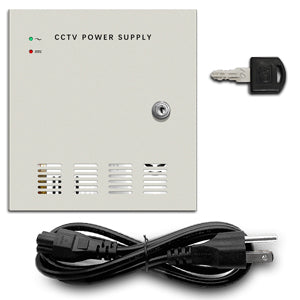

Packing List

• 1 × Power Supply Box

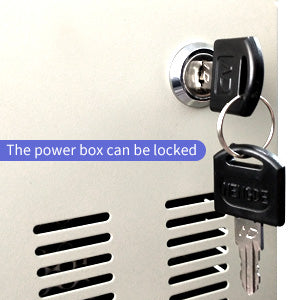

• 2 x Key Lock
• 1 x AC Power Cord
• 4 × Installation Accessories

Notice

• Review the entire instruction manual
• Check all connections to see if they are in good working condition
• Check cable routes and distance (Note: voltage will drop when distance of cable run increases)

Customer Questions & Answers

Question:Are these water proof outdoor rated?
Answer:I have mine outside and they work fine

Question:Is there a camera extension cord available for this?
Answer:I added my own extension cords.
